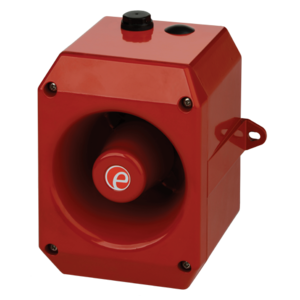

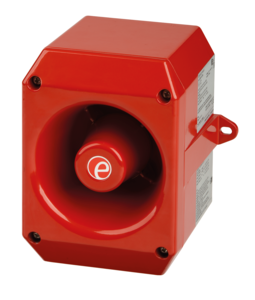

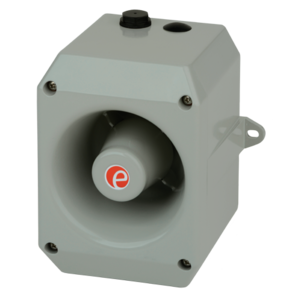

E2S: D105

The D105 is a high output, 104dB(A) alarm sounder. Featuring a corrosion proof, marine grade aluminium die cast enclosure. UL approved.

Low current consumption and high SPL in a robust IP66 enclosure ensures the D105 is suitable for all general signalling applications including fire, security and process control. The enclosure is chromated and powder coated providing resilience in the harshest of industrial environments.

Automatic synchronisation
Continuously rated
Dual M20x1.5mm threaded cable entries – adaptors available
Duplicate pluggable cable terminations – Class A
Ingress protection IP66 Type 4/4X/13/3R
Conformal coated (tropicalised) electronics
64 alarm tone frequencies and 4 remotely activated alarm stages
Available with custom tone configurations and frequencies
Diode polarized for use in supervised circuits
Low in-rush
Pluggable, duplicated cable terminals
Tropicalised electronics
Globally approved
Manufacturer warranty: 10 years

UL_Certificate_of_Compliance.pdf

CSFM_Listing.pdf
